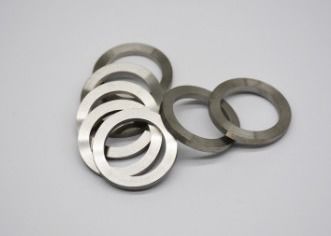

92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight

Certification
China Zhengzhou Sanhui Refractory Metal Co., Ltd. certification
China Zhengzhou Sanhui Refractory Metal Co., Ltd. certification
Zhengzhou Sanhui is professional partner with excellent quality and warm service.

—— James

We appreciate your long term cooperation with quality assurance and timely delivery.And thanks alot for your kind support through 2020.

—— Bob

I'm Online Chat Now

92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight

92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight
92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight

Large Image :  92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight

Product Details:
Place of Origin: Henan, China
Brand Name: Sanhui
Certification: ISO 9001:2008
Model Number: WNiFe/WNiCu
Payment & Shipping Terms:
Minimum Order Quantity: 10 kgs
Price: USD 100-200 per kg
Packaging Details: plywood case
Delivery Time: 15-20 days
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 500kgs per month
Detailed Product Description
Dimensions: 1.0-10mm Melting Point: 3410℃
Technology: Sintering /rotary Swaging Hardness: 20HRC
Application: Balance Weight, Shielding Parts, Military Industry Tensile: 3500-4000
Roughness: Ra1.0 Conditions: Vacuum Annealed Or Un-annealed
High Light:

92.5WNiCu Tungsten Alloy Rings

,

High Specific Gravity Tungsten Alloy Rings

,

92.5WNiCu tungsten copper ring

92.5WNiCu Tungsten High Specific Gravity Alloy Rings For Balance Weight With High Strength



Introduction of Tungsten Heavy Alloy:
Tungsten based high specific gravity alloys are also known as high-density tungsten based metals or high specific gravity tungsten alloys. They include tungsten nickel iron alloy (weak magnetic) and tungsten nickel copper alloy (non-magnetic). According to the American Standard ASTM b777-2007, tungsten nickel iron alloy and tungsten nickel copper alloy high-density tungsten base metals are divided into four grades, in which the tungsten content is 90%, 92.5%, 95% and 97% respectively, and the rest are nickel, iron, copper, etc.

Applications of Tungsten Nickel Copper Alloy:

Tungsten nickel copper alloy and tungsten nickel iron alloy products made by Zhengzhou Sanhui Tradings Co., Ltd are mainly applied in the following aspects:



Tungsten nickel copper alloy counter-balancing weight



Tungsten nickel copper alloy shielding material



Tungsten nickel iron alloy dart



Tungsten nickel iron alloy fishing pendant, tungsten alloy ball



Tungsten nickel iron alloy rivet ejector rod


Properties of tungsten heavy alloy:

W-Ni-Cu alloy is widely used because of its excellent properties such as high density, high strength, high hardness, good ductility, conductivity and thermal conductivity



Specifications of tungsten heavy alloy:


Chemical composition:

Composition 90%W 93%W 95%W 97%W
State Sinter Vacuum Forge Sinter Vacuum Forge Sinter Vacuum Sinter/Vacuum
Density(g/cc) 16.85~17.25 17.15~17.85 17.75~18.35 18.25~18.25
Hardness(HRC) 32Max 30Max 40Min 33Max 31Max 40Min 34Max 32Max 700Min/850Min
Tensile Strength (Mpa) 770Min 900Min 1400Max 770Min 910Min 1440Max 735Min 920Min 35Max/33Max
Yield Strength 620Min 620Min 1280Max 650Min 650Min 1340Max 650Min 650Min ~
Elongation(%) 5Min 15Min 5Min 12Min 3Min 3Min 3Min 12Min

2Min / 6 Min





92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight 0

92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight 1

92.5WNiCu High Specific Gravity Tungsten Alloy Rings For Balance Weight 2
