Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy

Certification
China Zhengzhou Sanhui Refractory Metal Co., Ltd. certification
China Zhengzhou Sanhui Refractory Metal Co., Ltd. certification
Zhengzhou Sanhui is professional partner with excellent quality and warm service.

—— James

We appreciate your long term cooperation with quality assurance and timely delivery.And thanks alot for your kind support through 2020.

—— Bob

I'm Online Chat Now

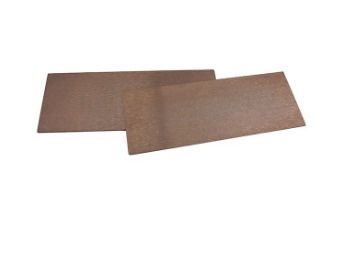

Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy

Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy
Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy

Large Image :  Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy

Product Details:
Place of Origin: China
Brand Name: Sanhui
Certification: ISO9001
Model Number: Molybdenum Parts
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Exported plywood case with foam inside
Delivery Time: 20 days after order
Payment Terms: T/T
Supply Ability: 10000kgs per month
Detailed Product Description
Name: Molybdenum Copper Sheet Chemical Composition: Mo60Cu40, Mo70Cu30
Application: Stamping, Stamping Processing Shape: Sheet, Customized
Density: 9.66g/cm3 Size: As Request
Processing: Powder Metallurgy
High Light:

Molybdenum Copper Alloy Sheets

,

Mo60Cu40 Copper Alloy Sheets

,

Powder Metallurgy Molybdenum Copper Alloy

Molybdenum Copper Alloy Sheets Mo60Cu40 Foil Plate on Sale



Molybdenum Copper Alloy Discription

Molybdenum copper alloy is used as heat sink material due to its high thermal conductivity. The properties of the two alloys are similar, and the density of molybdenum copper alloy is less than that of tungsten copper alloy. The preparation of molybdenum copper alloy mainly adopts the melt immersion method, using high-quality molybdenum powder and oxygen free copper powder, and applying isostatic pressing molding (high-temperature sintering copper infiltration), with fine structure, good arc breaking performance, good electrical conductivity, good thermal conductivity and small thermal expansion.



Applications of Molybdenum Copper Alloy

Radiator microwave carrier

Microelectronic packaging substrate and shell

Ceramic carrier

GaAs and silicon device base laser diode base surface mount encapsulated conductor microprocessor cover



Molybdenum Copper Alloys Properties:
Grade Mo(wt%) Cu (wt%) Density (g/cm3) Thermal Conductivity (W/(M.K) Thermal Expansivity (10-6/K)
Mo85Cu15 85+/-1 Balance 10 160-180 6.8
Mo80Cu20 80+/-1 Balance 9.9 170-190 7.7
Mo70Cu30 70+/-1 Balance 9.8 180-200 9.1
Mo60Cu40 60+/-1 Balance 9.66 210-250 10.3
Mo50Cu50 50+/-1 Balance 9.54 230-270 11.5

We make all kinds of MoCu alloy products as request.

Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy 0

We could offer Best Quality Customized Molybdenum Machined Parts Based Drawing

Molybdenum Copper Alloy Sheets Mo60Cu40 Powder Metallurgy 1
