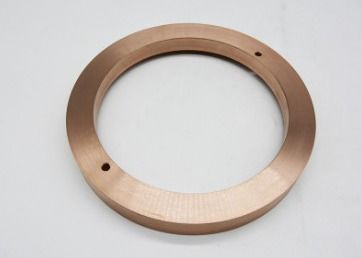

High Precision Machining Tungsten Copper Alloy W80Cu20 Ring Parts

High Precision Machining Tungsten Copper Alloy W80Cu20 Ring Parts
High Precision Machining Tungsten Copper Alloy W80Cu20 Ring Parts
video play

Large Image :  High Precision Machining Tungsten Copper Alloy W80Cu20 Ring Parts

Product Details:
Place of Origin: Henan, China
Brand Name: Sanhui
Certification: ISO 9001:2008
Model Number: W80Cu20
Payment & Shipping Terms:
Minimum Order Quantity: 5 kgs
Price: USD 60-100 per kg
Packaging Details: plywood case
Delivery Time: 15-20 days
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 1000 kgs per month
Detailed Product Description
Name: Copper Tungsten Alloy Parts Model Number: W80Cu20
Shape: Rod, Sheet, Rod, Sheet,ring, As Drawing Application: Industry,electrics
Dimensions: Dia 1-80mm Length: <=300mm
Density: 15.2g/cm3 Surface: Bright
High Light:

Machining Tungsten Copper Alloy

,

Tungsten Copper Alloy W80Cu20 Ring

,

W80Cu20 Copper Tungsten Alloy Ring

High Precision Machining Copper Tungsten Alloy W80Cu20 Ring Parts Hot Sale



Tungsten copper alloy discription:



We use high purity tungsten powder and oxygen free copper to produce various tungsten copper products through sintering, infiltration and other processes. The tungsten copper parts produced by our company have the characteristics of uniform structure, accurate composition ratio and high machining precision.



Tungsten copper alloy properties applications:

The tungsten copper produced by our company has high temperature resistance, arc ablation resistance, high strength, good thermal conductivity and is a good sweating cooling material. The tungsten copper parts produced by our company can be widely used in aerospace, power, electronics, metallurgy, machinery and other fields:

Heat sink for electronic equipment

Electrode for resistance welding

Arc contact and vacuum contact of high and medium voltage switch or circuit breaker

Electrode for EDM

Electronic packaging materials and heat sink materials

Components of spacecraft push device



Tungsten Copper Alloy types,chemical compositions and main properties:



Type chemical composition of copper tungsten alloy(%) resistivity(cm) tensile strength(kg/mm2) hardness density(g/cm3)
W Cu
F6002E 60 balance <=3.26*10-6 >=130 >=160 >=12.70
70 <=3.80*10-6   >=200 >=13.80
80 <=4.00*10-6   >=220 >=15.00





Brand and NO. Chemical components% Physical properties



Cu

Total impurities



W

Density

(g/cm³)

Hardness

HB

Resistivity

(µΩ·cm) ≤

Conductivity

IACS%≥

Bending strength

Mpa≥

CuW(50) 50±2.0 0.5 Bal. 11.85 115 3.2 54
CuW(55) 45±2.0 0.5 Bal. 12.30 125 3.5 49
CuW(60) 40±2.0 0.5 Bal. 12.75 140 3.7 47
CuW(65) 35±2.0 0.5 Bal. 13.30 155 3.9 44
CuW(70) 30±2.0 0.5 Bal. 13.80 175 4.1 42 790
CuW(75) 25±2.0 0.5 Bal. 14.50 195 4.5 38 885
CuW(80) 20±2.0 0.5 Bal. 15.15 220 5.0 34 980
CuW(85) 15±2.0 0.5 Bal. 15.90 240 5.7 30 1080
CuW(90) 10±2.0 0.5 Bal. 16.75 260 6.5 27 1160



We also offer tungsten copper alloy rings, plates, spare parts according to drawings, etc..

High Precision Machining Tungsten Copper Alloy W80Cu20 Ring Parts 0

High Precision Machining Tungsten Copper Alloy W80Cu20 Ring Parts 1
