Product Details:
Payment & Shipping Terms:
|
| Dimensions: | Dia 1-80mm | Length: | <=300mm |
|---|---|---|---|
| Name: | Tungsten Copper Alloy Rods | Model Number: | W75Cu25 |
| Shape: | Rod, Sheet, Rod, Sheet,ring | Application: | Industry,electrics |
| High Light: | W75Cu25 Copper Tungsten Rod,14.8g/Cm3 Copper Tungsten Rod,300mm Copper Tungsten Rod |
||

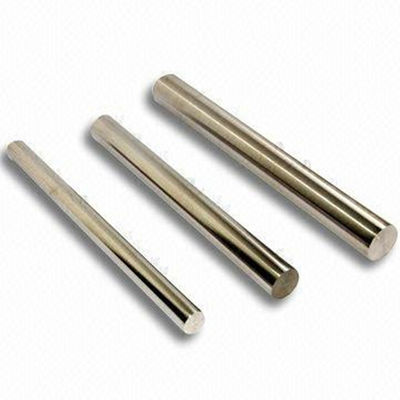

Polished 14.8g/cm3 W75Cu25 Tungsten Copper Alloy Rods 300mm Max Length
Tungsten-copper alloy features good heat and electrical conductive, high temperature resistance strength and ductility.
Tungsten copper alloy is widely used to manufacture switch contact for high-voltage electrical appliances, rocket nozzle throat liner and sternpost rudder, and other high temperature components and parts.
In addition, it also can be used to make electrode for spark processing, high temperature mold and other high heat and electrical conductive parts.
Tungsten Copper Alloy types,chemical compositions and main properties:
| Type | chemical composition of copper tungsten alloy(%) | resistivity(cm) | tensile strength(kg/mm2) | hardness | density(g/cm3) | |
| W | Cu | |||||
| F6002E | 60 | balance | <=3.26*10-6 | >=130 | >=160 | >=12.70 |
| 70 | <=3.80*10-6 | >=200 | >=13.80 | |||
| 80 | <=4.00*10-6 | >=220 | >=15.00 | |||
| Brand and NO. | Chemical components% | Physical properties | ||||||
|
Cu |
Total impurities ≤ |
W |
Density (g/cm³) ≥ |
Hardness HB ≥ |
Resistivity (µΩ·cm) ≤ |
Conductivity IACS%≥ |
Bending strength Mpa≥ |
|
| CuW(50) | 50±2.0 | 0.5 | Bal. | 11.85 | 115 | 3.2 | 54 | |
| CuW(55) | 45±2.0 | 0.5 | Bal. | 12.30 | 125 | 3.5 | 49 | |
| CuW(60) | 40±2.0 | 0.5 | Bal. | 12.75 | 140 | 3.7 | 47 | |
| CuW(65) | 35±2.0 | 0.5 | Bal. | 13.30 | 155 | 3.9 | 44 | |
| CuW(70) | 30±2.0 | 0.5 | Bal. | 13.80 | 175 | 4.1 | 42 | 790 |
| CuW(75) | 25±2.0 | 0.5 | Bal. | 14.50 | 195 | 4.5 | 38 | 885 |
| CuW(80) | 20±2.0 | 0.5 | Bal. | 15.15 | 220 | 5.0 | 34 | 980 |
| CuW(85) | 15±2.0 | 0.5 | Bal. | 15.90 | 240 | 5.7 | 30 | 1080 |
| CuW(90) | 10±2.0 | 0.5 | Bal. | 16.75 | 260 | 6.5 | 27 | 1160 |
Packaging details:
1.Packing with moisture-proof paper;
2.Packing with Kraft paper;
3.Packing with foam plastics in all sides;
4.Packing products in standard wooden cases.
Shipping terms :
We could offer shipping by sea ,and shipping by air ,such as Fedex, UPS, TNT, DHL etc.
Many express companies cooperated with our company for many years , They will provide the lowest freight .
And we will compare the offer and choose the best one for you .
