Product Details:
Payment & Shipping Terms:
|
| Name: | Tungsten Heavy Alloy Plate | Dimensions: | 1.0-10mm |
|---|---|---|---|
| Grain Size: | 0.6-0.8 Micro | Hardness: | 20HRC |
| Application: | Balance Weight, Military Industry | Tensile: | 3500-4000 |
| Roughness: | Ra1.0 | Conditions: | Vacuum Annealed Or Un-annealed |
| High Light: | Electrical Tungsten Heavy Alloy Plate,10mm Tungsten Heavy Alloy Plate,10mm tungsten alloy plate |
||

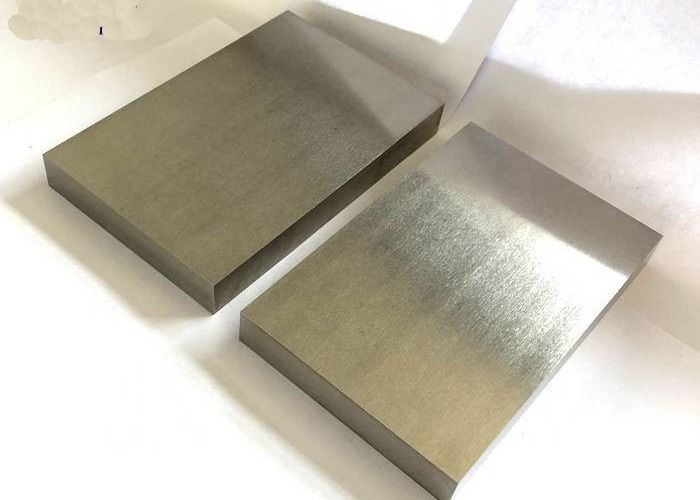

WNiFe Alloy Plates Supplied to X-ray Shielding Devices
WNiFe Alloy has played an significant role in weapon manufacturing with its characteristics of high strength, high strength, high density and good hardness, conductivity. and thermal conductivity. In addition, WNiFe alloy is also widely applied in Industrial, aerospace and civil industry (such as the electrical industry, drilling industry, etc.)
WNiFe or WNiCu heavy alloy has become a concern of the dual-use alloy materials.
Zhengzhou Sanhui Co., Ltd exported large amount of tungsten heavy alloy plates to be used as radiation shielding parts.
We also can offer tungsten heavy alloy balance weights.
| Composition |
90%W |
93%W |
95%W |
97%W |
|||||
| State |
Sinter |
Vacuum |
Forge |
Sinter |
Vacuum |
Forge |
Sinter |
Vacuum |
Sinter/Vacuum |
| Density(g/cc) |
16.85~17.25 |
17.15~17.85 |
17.75~18.35 |
18.25~18.25 |
|||||
| Hardness(HRC) |
32Max |
30Max |
40Min |
33Max |
31Max |
40Min |
34Max |
32Max |
700Min/850Min |
| Tensile Strength (Mpa) |
770Min |
900Min |
1400Max |
770Min |
910Min |
1440Max |
735Min |
920Min |
35Max/33Max |
| Yield Strength |
620Min |
620Min |
1280Max |
650Min |
650Min |
1340Max |
650Min |
650Min |
~ |
| Elongation(%) |
5Min |
15Min |
5Min |
12Min |
3Min |
3Min |
3Min |
12Min |
2Min / 6 Min |
