| Name: | TZM Molybdenum Alloy Plates | Surface: | Final Machined Surface |
|---|---|---|---|
| Chemical Composition: | 0.50% Ti, 0.08% Zr ,0.02% C | Application: | Hih-temperature Furnace Or Glass Field |
| Dimensions: | As Drawing | Material: | Ti,Zr,Moly Alloy |
| High Light: | 0.50% Ti TZM Alloy,Welding Electrodes TZM Alloy,240HV titanium zirconium molybdenum |
||
Product name: TZM Molybdenum electrodes
Standard: ASTM B387
Material: Ti0.5%-Zi0.08%-0.02% Carbon -Moly balance
Density: 10.1g/cc
Chemical composition of TZM alloy
| Element | Ti | Zr | C | Mo |
| Content, % | 0.4-0.5 | 0.08-0.12 | 0.01-0.04 | balance |
TZM is an alloy of 0.50% Titanium, 0.08% Zirconium and 0.02% Carbon with the balance Molybdenum.
TZM has great utility due to its high strength/high temperature applications, especially above 2000'F.
TZM is featured by higher recrystallization temperature, higher strength, hardness and good ductility at room and elevated temperatures than unalloyed Molybdenum. TZM offers twice the strength of pure moly at temperatures over 1300'C.
The recrystallization temperature of TZM is approximately 250'C higher than moly and it offers better weldability.
In addition, TZM exhibits good thermal conductivity, low vapor pressure, and good corrosion resistance and is machinable.
Parameters
| Thickness (mm) | Width (mm) | Length (mm) |
| ≥0.02 | 150 | L |
| 0.10-0.15 | 300 | 1000 |
| 0.15-0.20 | 400 | 1000 |
| 0.20-0.30 | 650 | 2540 |
| 0.30-0.50 | 650 | 2540 |
| 0.50-1.0 | 650 | 2540 |
| 1.0 -2.0 | 600 | 2000 |
| 2.0 -3.0 | 600 | 2000 |
| > 3.0 | 600 | L |
TZM Molybdenum Alloy Applications
TZM molybdenum alloy can be applied for jet tube of flying vehicle and a variety of components of high inlet temperature, high pressure turbine engine, such as hot gas seals and valves, turbine wheels or wheel blades.

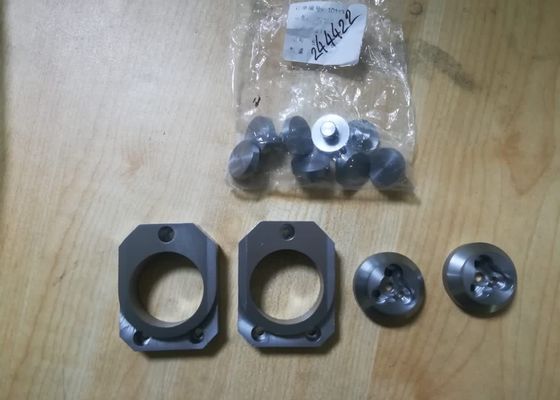

We also can make TZM customized parts according to drawings.
