Product Details:
Payment & Shipping Terms:
|
| Name: | Tungsten Heavy Alloy Plate | Dimensions: | 1.0-10mm |
|---|---|---|---|
| Grain Size: | 0.6-0.8 Micro | Application: | Balance Weight, Military Industry,Medical |
| Roughness: | Ra1.0 | Conditions: | Vacuum Annealed |
| Elongation: | 5-22% | Tensile Strength: | 780-980 Mpa |
| Density: | 17.5-18.1 G/cm3 | HRC: | 28-32 |
| High Light: | High Density WNiFe Plate,Tungsten Nickel Heavy Alloy Plate,10mm Nickel Iron Alloy Plate |
||

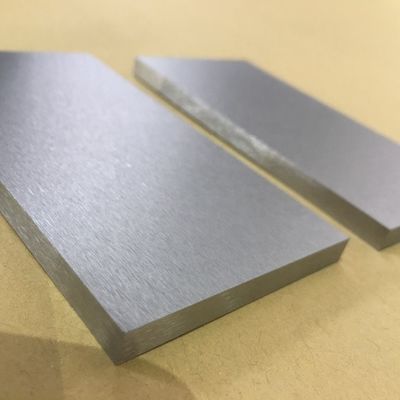

High Density WNiFe Plate Tungsten Nickel Iron Heavy Alloy Plate Tungsten Plate Price
Tungsten Alloy metals are mainly including W-Ni-Fe and W-Ni-Cu, are extensively used in military equipment, mechanical manufacturing, aircraft components, medical shields and sports equipment.
Our W-Ni-Fe alloy is used in collimator and shielding components to provide protection against X-ray and γ-ray radiation. A product manufactured from tungsten, nickel and copper, is distinctive due to its non-magnetic behavior. This material is used in the places to avoid magnetic interference.
WNiFe Alloy has played an significant role in weapon manufacturing with its characteristics of high strength, high strength, high density and good hardness, conductivity. and thermal conductivity. WNiFe alloy is widely applied in Industrial, aerospace and civil industry (such as the electrical industry, drilling industry, etc.)
In addition, WNiFe Alloy used in new type of medical CT machine,radition shield and protection components.
| Composition |
90%W |
93%W |
95%W |
97%W |
|||||
| State |
Sinter |
Vacuum |
Forge |
Sinter |
Vacuum |
Forge |
Sinter |
Vacuum |
Sinter/Vacuum |
| Density(g/cc) |
16.85~17.25 |
17.15~17.85 |
17.75~18.35 |
18.25~18.25 |
|||||
| Hardness(HRC) |
32Max |
30Max |
40Min |
33Max |
31Max |
40Min |
34Max |
32Max |
700Min/850Min |
| Tensile Strength (Mpa) |
770Min |
900Min |
1400Max |
770Min |
910Min |
1440Max |
735Min |
920Min |
35Max/33Max |
| Yield Strength |
620Min |
620Min |
1280Max |
650Min |
650Min |
1340Max |
650Min |
650Min |
~ |
| Elongation(%) |
5Min |
15Min |
5Min |
12Min |
3Min |
3Min |
3Min |
12Min |
2Min / 6 Min |
