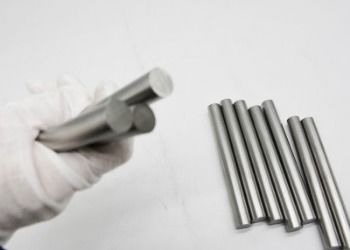

High Temperature Structural Molybdenum Bars 99.95% Purity Oxidation Resistance

High Temperature Structural Molybdenum Bars 99.95% Purity Oxidation Resistance
High Temperature Structural Molybdenum Bars 99.95% Purity Oxidation Resistance
video play

Large Image :  High Temperature Structural Molybdenum Bars 99.95% Purity Oxidation Resistance

Product Details:
Place of Origin: Henan, China
Brand Name: Sanhui
Certification: ISO9001
Model Number: 99.95% Mo
Payment & Shipping Terms:
Minimum Order Quantity: 5kg
Packaging Details: Plywood case
Delivery Time: about 20 days
Payment Terms: D/A, T/T, Western Union
Supply Ability: 500 kgs per month
Detailed Product Description
Commodity: Mo Bar Diameter: 10~100mm
Purity: 99.95% Length: 150~1500mm
Shape: Can Be Customized Surface: Polished
High Light:

150mm Structural Molybdenum Bars

,

99.95% Purity Molybdenum Bars

,

Oxidation Resistance Structural Molybdenum Bars

3N5 99.95% Pure Molybdenum Rods To Make High-temperature Structural Parts



Zhengzhou Sanhui can produce forged molybdenum rods, bars and tungsten, molybdenum, TZM and Mo La alloys rods and other parts. The molybdenum rods produced by our company have low impurity content, high density and good processing performance.



Through the control of forging process, supplemented by hot isostatic pressing process when necessary, the molybdenum rod and other forged products produced by Zhengzhou Sanhui not only ensure high density, but also effectively control the trend of grain growth. High density fine grain tungsten molybdenum and alloy forged products have become a feature of our products, which makes the products have obvious advantages in later processing and effectively improves the service life of products.

Characteristics of Molybdenum Rod
1. High strength at high temperature
2. Good oxidation resistance, corrosion resistance and long service life
3. Excellent thermal conductivity
4. High melting point
5. Outstanding resistance to electrochemecal corrosion
6. Application temperature environment:1500~1800C

Applications of Molybdenum Rods

① Molybdenum rod can be used for manufacturing electric vacuum devices and electric light source parts.

② Molybdenum rod is suitable for processing ion implantation parts.

③ Molybdenum rod is used as high-temperature heater and high-temperature structural parts.

④ Molybdenum rod is used as the electrode of melting furnace in glass and refractory fiber industry. It works in 1300 ℃ glass solution and has a long service life.

⑤ Molybdenum rod is used as electrode in rare earth industry.



Classification of Molybdenum Rods

① Pure molybdenum rod: molybdenum content is more than 99.95%.

② High temperature molybdenum rod (molybdenum lanthanum alloy rod): it contains 0.4 ~ 1.2% lanthanum, and the molybdenum content is the surplus except impurities.

③ TZM molybdenum rod: 0.4 ~ 0.6ti, 0.07 ~ 0.12zr, 0.01 ~ 0.05c.


Size and tolerance of Molybdenum Rod

Diameter(mm) Tolerance of diameter Length(mm) Tolerance of length
16-20 +1.0 300-1500 +2
20-30 +1.5 250-1500 +2
30-45 +1.5 200-1500 +3
45-60 +2.0 250-1300 +3
60-100 +3.0 250-800

+3




Chemical Composition of Molybdenum rod

Element W/% Element W/%
Pb <0.0001 Al <0.0001
Bi <0.0001 Si <0.001
Sn <0.0001 Ca <0.001
Sb <0.0001 Mg <0.001
Cd <0.001 P 0.0002
Fe 0.0050 C 0.0016
Ni 0.0007 N 0.0020
O 0.0050 Mo

99.98min
