Product Details:
Payment & Shipping Terms:
|
| Name: | Tungsten Heavy Alloy Plate | Dimensions: | 1.0-10mm |
|---|---|---|---|
| Grain Size: | 0.6-0.8 Micro | Application: | Balance Weight, Military Industry |
| Roughness: | Ra1.0 | Conditions: | Vacuum Annealed Or Un-annealed |
| Elongation: | 5-22% | Tensile Strength: | 780-980 Mpa |
| Density: | 17.5-18.1 G/cm3 | HRC: | 28-32 |
| High Light: | Tungsten Alloy WNiFe Parts,High Density WNiFe Parts,Radiation Shielding Tungsten Alloy WNiFe |
||

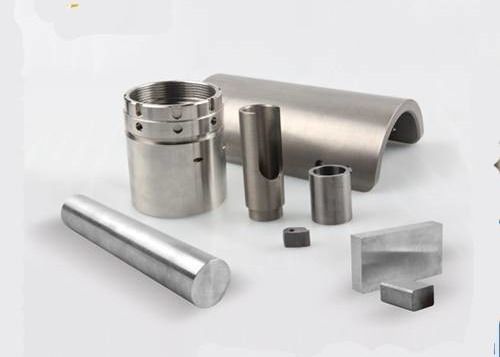

High Density Tungsten Alloy WNiFe Parts for Radiation Shielding
Compared with the traditional lead radiation protection material, the protective effect of high-density tungsten alloy material is 2-3 times that of lead, and it is harmless to the environment and body, so it is widely used in medical CT and linear accelerator, customs containers and airport security devices.
Our company is an important supplier of high density tungsten alloy parts for radiation shielding. Our core customers include medical CT and linear accelerator manufacturers, China's Tongfang Weishi, a famous manufacturer of customs containers and airport security devices.
| Composition |
90%W |
93%W |
95%W |
97%W |
|||||
| State |
Sinter |
Vacuum |
Forge |
Sinter |
Vacuum |
Forge |
Sinter |
Vacuum |
Sinter/Vacuum |
| Density(g/cc) |
16.85~17.25 |
17.15~17.85 |
17.75~18.35 |
18.25~18.25 |
|||||
| Hardness(HRC) |
32Max |
30Max |
40Min |
33Max |
31Max |
40Min |
34Max |
32Max |
700Min/850Min |
| Tensile Strength (Mpa) |
770Min |
900Min |
1400Max |
770Min |
910Min |
1440Max |
735Min |
920Min |
35Max/33Max |
| Yield Strength |
620Min |
620Min |
1280Max |
650Min |
650Min |
1340Max |
650Min |
650Min |
~ |
| Elongation(%) |
5Min |
15Min |
5Min |
12Min |
3Min |
3Min |
3Min |
12Min |
2Min / 6 Min |
