Product Details:
Payment & Shipping Terms:
|
Application: | Nuclear,shipbuilding, Welding, Petrochemical Industry, Etc | Ni (Min): | 58% |
---|---|---|---|
Elongation (≥ %): | 40% | Resistance (μΩ.m): | 1.37 |
Tensile Strength (≥ MPa): | 595 | Material: | Ni Cr |
High Light: | Anti Corrosion Inconel Alloy 600,Inconel Alloy 600 Seamless Tubes,nickel alloy 600 Seamless Tube |

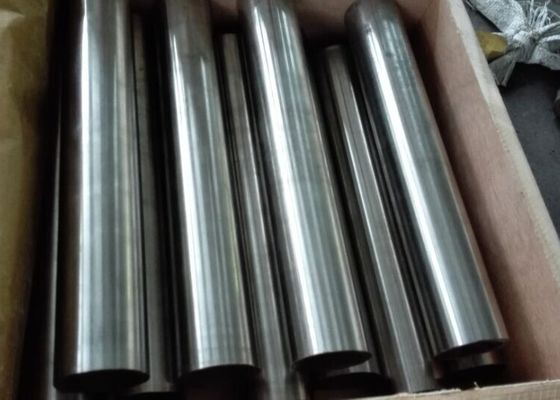

Inconel 600 seamless pipe sizes:
1. Out Diameter:(1/2''-30'')5mm-762mm
2. Wall thickness:Sch5S-XXS
3. Length: 3m-6m or as required
4. Standard: ASTM, AMSE, DIN, JIS,GB
Density
|
8.45 g/cm³
|
Melting point
|
1290-1350°C
|
Alloy
|
%
|
Ni
|
Cr
|
Fe
|
C
|
Mn
|
Si
|
Cu
|
P
|
S
|
|
600
|
Min. |
balance
|
14
|
6
|
|
|
|
||||
Max.
|
balance
|
17
|
10
|
0.15
|
1.0
|
0.5
|
0.5
|
0.03
|
0.002
|
Alloy state
|
Tensile strength
Rm N/mm² |
Yield strength
R P0. 2N/mm² |
Elongation
A 5 %
|
Brinell hardness
HB
|
600
|
595
|
310
|
42
|
≤220
|
8. Typical application fields of Inconel 600 seamless tube as below:
1. Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
2. Absorption tower, gas import board, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
3. The equipment and parts in the use of acidic gas environments.
4. Acetic acid and anhydride reaction generator
5. Sulfur acid cooling
