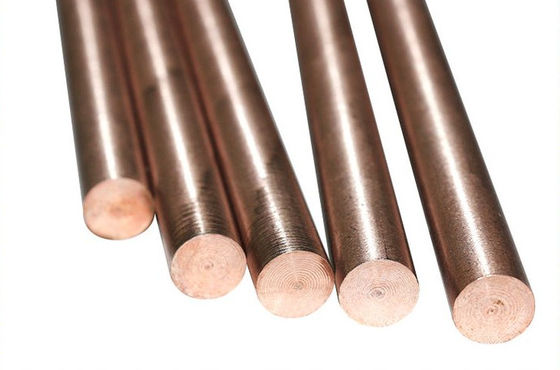

ASTM Refractory Copper Tungsten Bar

ASTM Refractory Copper Tungsten Bar
ASTM Refractory Copper Tungsten Bar
video play

Large Image :  ASTM Refractory Copper Tungsten Bar

Product Details:
Place of Origin: China
Brand Name: Sanhui
Certification: ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 10 Kilograms
Packaging Details: Exported plywood case with foam inside
Delivery Time: 20 days after order
Payment Terms: T/T
Supply Ability: 5000 kilograms per month
Detailed Product Description
Name: Copper Alloy-Copper Tungsten Alloy Application: Electrical Contacts
Processing Method: Sopressing Processing Equipment: Isostatic Pressing Machine
Surface: Polished Standard: ASTM
High Light:

astm wcu alloy bar


polished copper tungsten bar


320mm diameter wcu alloy bar

High Density Copper Tungsten Alloy WCu Alloy Bar Price On Sale


Tungsten copper alloy-CuW alloy are strong refractory metal materials manufactured by a strictly controlled process involving pressing, sintering and infiltrating with copper.

They are highly resistant to heat, electric arc, wear and deformation at high temperature welding, flash butt and spot welding. They also have excellent electrical and thermal conductivity.

The properties of Tungsten composites are related to the copper-to-Tungsten ratio. If the Tungsten content improves, the electric arc and wear resistance will increase while the thermal and electrical conductivity, on the contrary, reduce.

Due to their unique properties, Tungsten based composites are widely used where the combination of good electrical and/or thermal conductivity and low thermal deformation is necessary, for example:

  • In electric resistance welding as electrical contacts or heat sinks.
  • In electrodes for electrical discharge machining (EDM) and electrochemical machining (ECM).
Physical and Mechanical Properties:tungsten copper rod para2.jpg

CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching and contact materials for oil filled devices. CuW55 is also used for arcing contacts in oil circuit breakers and arcing edges of selectors and switchblades in transformer tap changers.

CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.

CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.

CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc..


Type Length(mm) Width(mm) Thickness(mm) Diameter(mm)
Tungsten Copper rod 2 ~ 300     2 ~ 320
Tungsten Copper plate 10 ~ 300 10 ~ 300 2 ~ 200
Other types cube,ring,block,Tungsten-Copper electrode and other customized shaped products.

Tungsten-Copper products:

ASTM Refractory Copper Tungsten Bar 1ASTM Refractory Copper Tungsten Bar 2ASTM Refractory Copper Tungsten Bar 3
