Product Details:
Payment & Shipping Terms:
|
| Name: | Copper Tungsten Alloy Parts | Model Number: | W75Cu25, W70Cu30, W80Cu20, W90Cu10 |
|---|---|---|---|
| Shape: | Rod, Sheet, Rod, Sheet,ring, Customized | Application: | Industry,electrics |
| Dimensions: | Dia 1-80mm | Length: | <=300mm |
| High Light: | Fabricated Tungsten Copper Alloy,WCu Alloy copper electrode,WCu Alloy Electrodes |
||

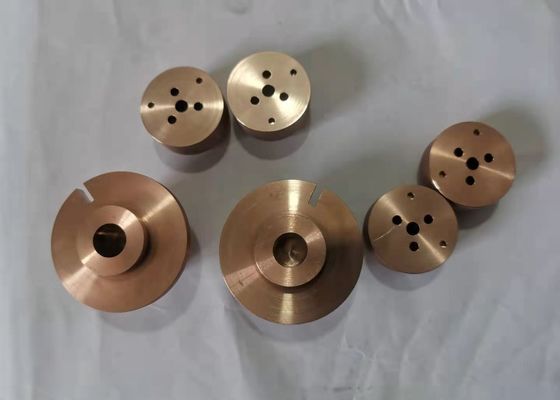

Fabricated WCu Alloy Copper Electrodes in Welding Line
Tungsten Copper alloy Properties:
Tungsten-copper alloy features good heat and electrical conductive, high temperature resistance strength and ductility.
Tungsten copper alloy applications:
WCu alloy is the composite of Tungsten and Copper, which own the excellent performances of Tungsten and Copper, such as heat-resistant, ablate-resistant, high-intensity, excellent thermal and electrical conductivity. WCu alloy is easy to be machined. WCu alloy is used widely in such industries as engine, electrical power, electron, metallurgy, spaceflight and aviation.
Tungsten Copper Alloy types,chemical compositions and main properties:
| Type | chemical composition of copper tungsten alloy(%) | resistivity(cm) | tensile strength(kg/mm2) | hardness | density(g/cm3) | |
| W | Cu | |||||
| F6002E | 60 | balance | <=3.26*10-6 | >=130 | >=160 | >=12.70 |
| 70 | <=3.80*10-6 | >=200 | >=13.80 | |||
| 80 | <=4.00*10-6 | >=220 | >=15.00 | |||
| Brand and NO. | Chemical components% | Physical properties | ||||||
|
Cu |
Total impurities ≤ |
W |
Density (g/cm³) ≥ |
Hardness HB ≥ |
Resistivity (µΩ·cm) ≤ |
Conductivity IACS%≥ |
Bending strength Mpa≥ |
|
| CuW(50) | 50±2.0 | 0.5 | Bal. | 11.85 | 115 | 3.2 | 54 | |
| CuW(55) | 45±2.0 | 0.5 | Bal. | 12.30 | 125 | 3.5 | 49 | |
| CuW(60) | 40±2.0 | 0.5 | Bal. | 12.75 | 140 | 3.7 | 47 | |
| CuW(65) | 35±2.0 | 0.5 | Bal. | 13.30 | 155 | 3.9 | 44 | |
| CuW(70) | 30±2.0 | 0.5 | Bal. | 13.80 | 175 | 4.1 | 42 | 790 |
| CuW(75) | 25±2.0 | 0.5 | Bal. | 14.50 | 195 | 4.5 | 38 | 885 |
| CuW(80) | 20±2.0 | 0.5 | Bal. | 15.15 | 220 | 5.0 | 34 | 980 |
| CuW(85) | 15±2.0 | 0.5 | Bal. | 15.90 | 240 | 5.7 | 30 | 1080 |
| CuW(90) | 10±2.0 | 0.5 | Bal. | 16.75 | 260 | 6.5 | 27 | 1160 |
We also offer tungsten copper alloy rings, plates, spare parts, etc..
