Height 10-150mm Tungsten Fabricated Parts Container For Coating

Height 10-150mm Tungsten Fabricated Parts Container For Coating
Height 10-150mm Tungsten Fabricated Parts Container For Coating
video play

Large Image :  Height 10-150mm Tungsten Fabricated Parts Container For Coating

Product Details:
Place of Origin: Henan, China
Brand Name: Sanhui
Certification: ISO 9001:2008
Model Number: W1
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 65-300 per pc
Packaging Details: plywood case
Delivery Time: 15-20 days
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 500 kgs per month
Detailed Product Description
Application: High Temperature Furnace, Coating Name: Tungsten Crucible
Size: According To Drawings Surface:: Ground
Purity: 99.95% MOQ: 1 Pc
High Light:

Crucible Tungsten Machined Parts

,

Diameter 10mm tungsten crucible

,

Diameter 100mm tungsten crucible

Height 10-150mm Tungsten Fabricated Parts Container For Coating

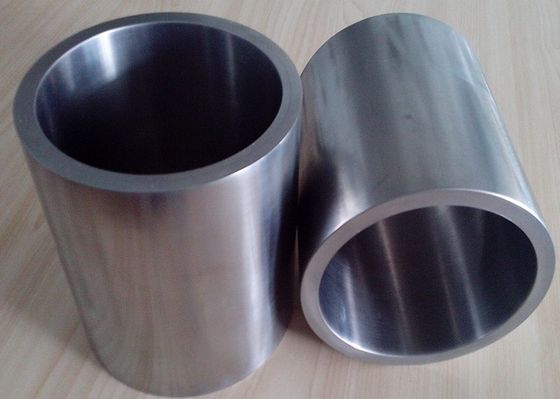

Description of Tungsten Crucible:



Tungsten crucible, also known as tungsten melting pot, can be mainly divided into such molding ways as sintering molding (powder metallurgy technology is applied thereto), impact molding, spinning molding, lathing molding (usually has relatively small size) and using tungsten rod and welding processing with the appropriate technology.



Owing to the feature of tungsten that its melting point reaches 3410℃, tungsten crucible is widely applied in the industry of furnace such as sapphire growth furnace, quartz glass melting furnace, single crystal furnace, induction furnace and rare earth smelting furnace. And the temperature of tungsten crucible in working environment is above 2000℃.



Advantages of Sanhui Tungsten Crucible:



1. Our tungsten crucible has excellent high temperature heat resistance, electrical conductivity, creep resistance, corrosion resistance

2.Lower vapor pressure

3. Tungsten material of high purity can prevent the contamination to evaporation material and substrate



Applications of of Tungsten Crucible:



Tungsten crucible  is used for smelting of rare earth metals, heating elements of induction furnace, heating elements of rare earth metals,
smelting of quartz, glass and applied as high-temperature containers.



Also tungsten crucibles can be applied in sapphire growth furnace, quartz glass melting furnace, single crystal furnace, induction furnace, etc.



Tungsten crucible liners are very useful in electron-beam evaporation as they typically increase the evaporation rates of the material deposited. They also facilitate the task of changing evaporation materials. And we can provide crucible liners in a variety of sizes



Condition : Sintering or forging.

Material

Density

Size

w 99.95%

19.1g/cm3(Forging)

Diameter:10-100mm; High:10-120mm

w 99.95%

18.3g/cm3(Sintering)

Diameter:100-650mm; High:50-850mm



Measurements of Customized 99.95% Tungsten Crucible(mm):

Delivery condition

Specification

Thickness

Roughness(μm)

Diameter

Height

Sinter

10~700

10~1000

5~30



Finished sinter

10~650

10~850

7~25

<2.5



We also offer many other materials crucibles, like pure tungsten (99.95%), pure molybdenum (99.95%), high temperature molybdenum, MoLa (99.95%).
