6.49g/Cm3 Zr702 Zirconium Rod With Bright Surface

6.49g/Cm3 Zr702 Zirconium Rod With Bright Surface
6.49g/Cm3 Zr702 Zirconium Rod With Bright Surface

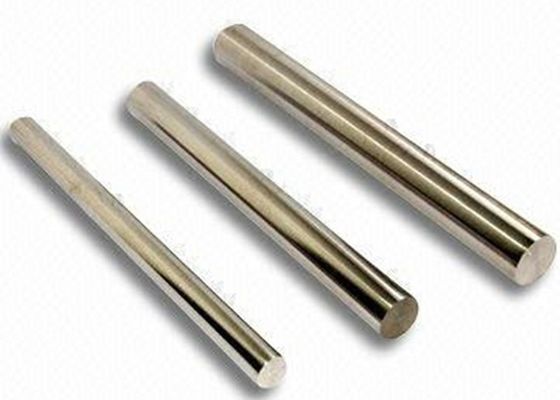

Large Image :  6.49g/Cm3 Zr702 Zirconium Rod With Bright Surface

Product Details:

Place of Origin: China
Brand Name: Sanhui
Certification: ISO9001
Model Number: Zr702

Payment & Shipping Terms:

Minimum Order Quantity: 5 kgs
Price: USD 100-200 per kg
Packaging Details: plywood case
Delivery Time: 15-20 days
Payment Terms: D/A, D/P, T/T, Western Union
Supply Ability: 1000 kgs per month
Detailed Product Description
Material: Zirconium Shape: Rod, Round Rod /Bar
Model Number: Zr702 Application: Electronics Metallurgy/Jewelry
Dimensions: Dia3--120mm Length: 100mm~2000mm
Purity: >99.6% Processing: Forged / Grounded / Polished
High Light:

Zr702 Zirconium Rod

,

6.49g/Cm3 Zirconium Rod

,

6.49g/Cm3 zirconium round bar

Bright Zirconium Bar Is Used to Make Jewelry

ASTM B550 Zr702 Zirconium Bar Per Kg Prices From Factory

Specifications

Zirconium has high melting point 1852℃. The surface of zirconium is easy to form an oxide film with luster. Zirconium has better corrosion resistance.



Zirconium can be made as accessory of the anti cauterization pump and is one ideal material of anode.





Designation Products name Surface condition Diameter(mm) Length





Zr702

Zirconium wire

Annealing

Cold-worked

0.8~<2.5 500~1000
2.5~13 500~3048
Zirconium bar

Annealing

Heat process

6.35~<12.7 1000~3048
12.7~<38.1 1000~3048
38.1~<150 1000~4064

















zirconium
Grade Zr2 Zr4 Zr60702 Zr60705
Production Standard Size
Zirconium bar GB8769-88 ASTMB550 dia(6-120mm)*(50-2500mm)
Zirconium wire ASTMB550 dia(0.5-6mm)*L
Zirconium plate ASTMB551 (thkness1.0-35mm)*(W50-500mm)*(L10-2000mm)
Zirconium tube ASTMB523 OD(6-100mm)*(L50-3000mm)
Zirconium foil ASTMB628 thkness0.05-6mm*W20-150mm*L



We can offer zirconium plate, zirconium sheet, zirconium bar and zirconium tube, zirconium wire:

Standards: ASTM B551, R60700, R60702, R60704, R60705, R60706, Zr2, Zr4, AMS, MIL, JIS, R60001, R60802, R60804, R60901, R60904


Zirconium plate size available: Thick 0.02mm Min * Wide 1200mm Max * Long 3000mm max

3. Zirconium round rod, rectangular bar
Standards: ASTM B351, R60001, R60802, R60804, R60901, R60904, Zr2, Zr4, R60700, R60702, R60704, R60705, R60706
Size available: Outer Diameter 3mm ~ 350mm * Long 6000mm max

4. Zirconium wire
Standards: ASTM B351, R60001, R60802, R60804, R60901, R60904, Zr2, Zr4, R60700, R60702, R60704, R60705, R60706
Size available: Outer Diameter 0.05mm min

5. Zirconium tube, pipe
Standards: ASTM B523, Zr2, Zr4, R60702, R60704, R60705, R60706, JIS, DIN
For seamless, size available:
OD 4-115mm * Wall thick 0.2~8mm * Long 15000mm max
For welded, size available:
OD 80~ 650mm * Wall thick 1 ~ 10mm * Long 15000 max

6. Zirconium forgings and castings
7. Featured Zirconium and zirconium alloys

For commercial Application (Hf ≤4.5%):
UNS R60700 (Zr1): Commercially pure, Zr+Hf≥99.2
UNS R60702 (Zr3): Commercially pure, Zr+Hf≥99.2
UNS R60704 (Zirconium-Tin alloy): Zr-1.5%Sn, Zr+Hf≥97.5
UNS R60705 (Zr5, Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.18
UNS R60706 (Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.16

For Nuclear Industry (Reactor grade, Hf ≤ 0.01%)
UNS R60001 (Zr0):
UNS R60802 (Zr2, Zircaloy2, Zirconium-Tin alloy): Zr-1.5Sn-0.15Fe-0.1Cr-0.05Ni
UNS R60804 (Zr4, Zircaloy4, Zirconium-Tin alloy): Zr-1.5Sn-0.2Fe-0.1Cr
UNS R60901 (Zirconium-Niobium alloy): Zr-2.5Nb, O-0.1%
UNS R60904 (Zirconium-Niobium alloy): Zr-2.5Nb
Zr-1Nb (Zr-1%Nb alloy)



Welcome to enquire zirconium products.
